?AC-DC開關按鈕主機電源功能模塊開架式CINCON

發布消息日期：2023-04-07 16:55:50     挑選(xuan)：1412

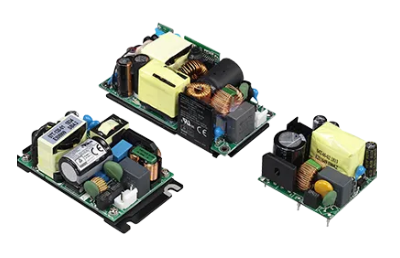

CINCON Open Frame AC-DC開(kai)關(guan)電源模塊提供(gong)射(she)頻連接器(qi)型(xing)(xing)、基材制冷型(xing)(xing)和PCB安(an)(an)裝使用型(xing)(xing)，頻率范(fan)圍從6W到(dao)500W，是目前市面(mian)上(shang)功率密度相對(dui)較高的(de)設(she)備(bei)。全線產品已全部(bu)獲得全新(xin)ITE安(an)(an)全或醫(yi)療安(an)(an)全驗證。針對(dui)CINCON的(de)部(bu)分新(xin)型(xing)(xing)號，它(ta)們(men)滿足EN/IEC 60335-1標準規(gui)定(ding)，并具有鮮(xian)明的200%峰值負載(zai)性能(neng)。這種特殊200%峰值負載(zai)性能(neng)能(neng)夠滿(man)足客戶在(zai)短期內突發(fa)性電力需求，目前(qian)能(neng)夠避免選擇其它超規(gui)格設備，降(jiang)低成本(ben)和布局空間/占用面積(ji)損耗。

武漢市(shi)立(li)維創展科(ke)技一区二区亚洲(zhou)-亚洲(zhou)国产(chan)一区二区三区-亚洲(zhou)一区在(zai)线播放-欧美午夜精品是CINCON電原(yuan)組件的(de)銷售商生產(chan)(chan)商商，供給CINCON電源開關傳(chuan)感器(qi)的(de)DC-DC轉化成器(qi)、AC-DC電原(yuan)、LED電源線等，產(chan)(chan)品的(de)原(yuan)版進品，高(gao)質(zhi)量質(zhi)量保障，極高(gao)價錢資(zi)源優勢，的(de)歡(huan)迎咨詢公司

詳細情況清楚CINCON電源模塊請點選：//anchor-appliance.cn/article/2177.html


ITE/Industrial On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CFM04S

4W

85-305

3.3V, 5V, 12V, 15V, 24V

Altitude 5000m
Class II

1.56x0.764x0.720
(PCB-mount)
1.62x0.83x0.787
(Encapsulated)
1.95.x0.71x0.689
(Wafer)

CFM06S

6W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

Altitude 5000m
Class II

1.555x0.764x0.720
(PCB-mount)
1.618x0.827x0.787
(Encapsulated)
1.950.x0.728x0.689
(Wafer)

CFM12S

12W

90-264

5V, 9V, 12V, 15V, 24V

Altitude 5000m
Approval EN60335-1
Class II

1.500x1.000x0.764
(PCB-mount)
1.600x1.1x0.772
(Encapsulated)
2.150x1.000x0.681
(Wafer)

CFM20S

20W

90-264

5V, 12V, 15V, 24V, 48V

Altitude 5000m
Meets EN60335-1
Class II

2.382x1.300x0.906
(PCB-mount)
2.482x1.402x0.933
(Encapsulated)
3.000x1.300x0.831
(Wafer)

CFM25S

25W

90-264

5V, 12V, 15V, 24V, 36V, 48V

2 Times Peak Load
Altitude 5000m
Approval EN60335-1
Class II

2.000x1.100x0.980
(PCB-mount)
2.091x1.193x0.976
(Encapsulated)
2.776x1.100x0.906
(Wafer)

CFM36S

36W

90-264

5V, 12V, 15V, 24V, 48V

Altitude 5000m
Class I & Class II

3.00x1.50x1.100
(PCB-mount)
3.10x1.60x1.134
(Encapsulated)
3.00x1.50x1.000
(Wafer)

CFM41S

40W

90-264

12V, 15V, 24V, 36V, 48V, 5V

2 Times Peak Load
Altitude 5000m
Meets EN60335-1
Class II

2.000x2.000x1.01
(PCB-mount)
2.14x2.14x1.035
(Encapsulated)
2.70x2.00x0.941
(Wafer)

CFM61S

60W

90-264

5V, 12V, 15V, 24V, 36V, 48V

2 Times Peak Load
Altitude 5000m
Class II

2.000x2.000x1.346
(PCB-mount)
2.136x2.136x1.409
(Encapsulated)
2.700x2.000x1.291
(Wafer)

ITE/Industrial Connector Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CFM20

20W

85-264

3.3V, 5V, 9V, 12V, 15V, 24V

Low Profile

3.501x2.000x1.000
(PCB-mount)
3.501x2.000x0.906
(Wafer)

CFM40S

40W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V

High Peak Load

4.000x2.000x1.275
(PCB-mount)
4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover)

CFM40D/T

40W

90-264

3.3V/5V/-12V, 5V/12V, 5V/12V/-12V, 5V/12V/-5V, 5V/15V/-15V, 5V/24V, 5V/24V/-12V, 5V/24V/-5V, 5V/24V/12V

Dual & Triple Outputs

4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover)

CFM50S

50W

85-264

5V, 12V, 15V, 24V, 36V, 48V

Altitude 5000m
Meets EN60335-1
ClassⅠ& Class Ⅱ

3.000x2.000x1.067 (Wafer)
3.000x2.00x1.142 (PCB Mount)
3.598x2.520x1.358 (Cover)

CFM60S

60W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V

High Peak Load

4.000x2.000x1.275
(PCB-mount)
4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover)

CFM60T

60W

90-264

3.3V/5V/-12V, 5V/12V/-12V, 5V/15V/-15V, 5V/24V/-12V

Triple Outputs

4.000x2.000x1.260
(Wafer)

CFM70S

70W

85-264

5V, 12V, 15V, 24V, 36V, 48V

Altitude 5000m
Meets EN60335-1
ClassⅠ& Class Ⅱ

3.000x2.000x1.067 (Wafer)
3.000x2.00x1.142 (PCB Mount)
3.598x2.520x1.358 (Cover)
2.170x3.140x1.201 (Encapsulated)
2.170x4.200x1.201 (Terminal Block)
2.170x4.200x1.783 (Din rail type)

CFM80S

80W

90-264

5V, 12V, 15V, 24V, 48V

EN61000-3-2 Class A

4.000x2.000x1.142
(PCB-mount)
4.000x2.000x1.07
(Wafer)

CFM81S

80W

90-264

12V, 15V, 24V, 48V

2 Times Peak Load
Altitude 5000m
Approval EN60335-1
ClassⅠ& Class Ⅱ

3.000x2.000x1.339 (Wafer)
3.200x2.441x1.575 (Cover)

ITE/Industrial Baseplate-cooled Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CFM130S

130W

80-264

12V, 18V, 19V, 24V, 36V, 48V

Altitude 5000m
ClassⅠ& Class Ⅱ

3.000x2.000x1.20 (Open-frame)
3.598x2.000x1.299 (Baseplate)
3.598x2.520x1.358 (Cover)

CFM150S

150W

90-264

12V, 24V, 28V, 36V, 48V

Altitude 5000m
Class I & Class II

4.00x2.00x1.283
(Open-frame)
4.598x2.00x1.362
(Baseplate)

CFM202S

200W

90-264

12V, 24V, 28V, 36V, 48V, 56V

Altitude 5000m
Approval EN60335-1
ClassⅠ& Class Ⅱ

4.000x2.000x1.311 (Baseplate)
4.598x2.520x1.358 (Cover)

CFM260S

260W

85-264

12V, 24V, 36V, 48V

Altitude 5000m
Class I

4.000x2.000x1.441
(Open-frame)
4.598x2.000x1.520
(Baseplate)
4.598x2.520x1.594
(Cover)

CFM300S

300W

90-264

12V, 24V, 36V, 48V

Altitude 5000m
Meets EN60335-1
Class I

5.000x3.000x1.421
(Baseplate)
5.355x3.425x1.591
(Cover)

CFM400S

400W

80-264

12V, 18V, 24V, 36V, 48V, 54V

Altitude 5000m
Meets IEC/EN60335-1

5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover)

CFM500S

500W

80-264

12V, 18V, 24V, 36V, 48V

Altitude 5000m
Meets EN60335-1

5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover)

Medical Class II On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CFM21

20W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

2MOOP

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)

CFM21M

20W

90-264

5V, 9V, 12V, 15V, 24V

2MOPP
Low Profile
Altitude 5000m

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)

Medical Class I Connector Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CFM40M

40W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V

2MOPP

3.000x2.000x0.948
(PCB-mount)
3.000x2.000x0.909
(Wafer)
3.200x2.441x1.260
(Cover)

CFM60M

60W

90-264

5V, 12V, 15V, 24V, 48V

2MOPP

4.000x2.000x1.100
(Wafer)
4.606x2.441x1.575
(Cover)

CFM100M

100W

90-264

5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 28V, 36V, 48V

2MOPP

5.000x3.000x1.050
(Wafer)

CFM150M

150W

90-264

12V, 24V, 36V, 48V

2MOPP

5.000x3.000x1.050
(Wafer)

Medical Baseplate-cooled Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CFM130M

130W

80-264

12V, 18V, 19V, 24V, 36V, 48V

2MOPP
Altitude 5000m
Class I & Class II

3.000x2.000x1.20
(Open-frame)
3.598x2.000x1.299
(Baseplate)
3.598x2.520x1.358
(Cover)

CFM200M

200W

90-264

12V, 24V, 48V

2MOPP
Class I & Class II

4.000x2.000x1.480
(Baseplate)
4.606x2.441x1.594
(Cover)

CFM300M

300W

90-264

12V, 24V, 36V, 48V

2MOPP
Class I

5.000x3.000x1.421
(Baseplate)
5.355x3.425x1.591
(Cover)

CFM500M

500W

80-264

12V, 18V, 24V, 36V, 48V

2MOPP
Altitude 5000m
Meets EN60335-1
Class I

5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover)
