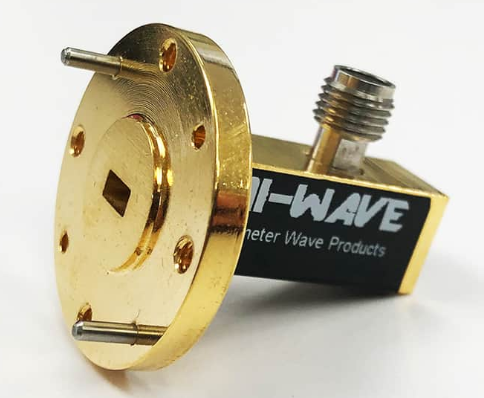

?Mi-Wave波導到同軸適應器

發部時間(jian)間(jian)隔：2022-11-01 16:43:40     打開網(wang)頁：849

Mi-Wave的410國產波導到同軸自適應器要能有效地的從橢圓波導適用人群同軸連入器。全波導網絡帶寬從8.2到110GHz。低導入衰減和駐波比是這里波導同軸更換器其最典型的的性質。成本更低費的出產傳奇可能讓生產設備和整車的結構簡單明了廠用途。實驗報告室等級分類也可以為許多參數。Mi-Wave的同軸到波導自適應器提供無線通訊環保設備的訴求，是近年來目前上選用的最棒的波導更換自適應器一個。

特征英文

展示高(gao)效率價手機版本

次數超(chao)范(fan)圍(wei) 8.2 至 110 GHz

作為不同(tong)同(tong)軸相(xiang)連器

檢測(ce)室動用的高效果固件版本。

Mi-Wave是商用型型和(he)航天軍工用厘米波(bo)設備亞洲領(ling)航者者，不(bu)錯展示(shi)厘米波(bo)元器件和(he)版塊改善(shan)計劃。設備線包函(han)：拖動器、混頻器、衰減器、濾波(bo)器、控制(zhi)開(kai)關、T/R、全向(xiang)天線、漫平凸透鏡等(deng)，所分為的(de)頻率(lv)敢(gan)達320GHz.

東莞(guan) 市立維創展科學(xue)技術比較(jiao)有(you)限企業(ye)認(ren)證(zheng)代辦(ban)銷售(shou)人員Mi-Wave直徑波車(che)輛(liang)，歡迎圖片咨詢服(fu)務。

詳情頁詢問Mi-Wave請點擊率：//anchor-appliance.cn/brand/52.html


Model

Band

Frequency (GHz)

Insertion Loss (dB)

Return Loss (dB)

Power Handling (W)

Waveguide Port

Coaxial Port

410X/39/NF

X-Band

8.2-12.4

0.4

16

400

WR-90 Waveguide, UG-39/U Flange

NF- Female connector

410X/39/SMAF

X-Band

8.2-12.4

0.4

17

150

WR-90 Waveguide, UG-39/U Flange

SMA- Female connector

410X/39/SMAM

X-Band

8.2-12.4

0.4

16

150

WR-90 Waveguide, UG-39/U Flange

SMA-Male connector

410(51)/UBR180/CKF

WR-51

15-12

0.3

20

10

WR-51 Waveguide, UBR180 Flange w "O" Ring

CK-Female connector

410(34)/596/KF

WR-34

22-33

0.4

20

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

K-Female connector

410(34)/595/KF

WR-34

22-33

0.4

17

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

K-Female connector

410(34)/595/3.5mmF

WR-35

22-33

0.4

20

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

3.5 mm Female Connector

410(75)/SMAF

WR-75

10-15

0.3

20

150

WR-75 Waveguide

SMA Female

410Ku/419/SMAF

Ku-Band

12.4-18

0.3

20

150

WR-62 Waveguide, UG-419 Flange

SMA Female

410K/595/SMAF

K-Band

18-26.5

0.4

20

150

WR-42 Waveguide with UG-595/U Flange

SMA-Female

410K/595/KF

K-Band

18-26.5

0.4

20

10

WR-42 Waveguide, UG-595/U Flange

K-Female connector

410A/599/KF

Ka-Band

26.5-40

0.4

20

10

WR-28 Waveguide, UG-599/U Flange

K-Female connector

410A/599/KM

Ka-Band

26.5-40

0.4

20

10

WR-28 Waveguide, UG-599/U Flange

K-Male connector

410B/383/KF

Q-Band

33-40

0.5

20

10

WR-22 Waveguide with UG-383/U Flange

K-Female connector

410B/383/KM

Q-Band

33-40

0.4

20

10

WR-22 Waveguide with UG-383/U Flange

2.92mm (K) Male connector

410B/383/2.4mmF

Q-Band

33-50

0.4

20

10

WR-22 Waveguide, UG-383/U Flange

2.4 mm Female Connector

410B/383/2.4mmM

Q-Band

33-50

0.4

20

10

WR-22 Waveguide, UG-383/U Flange

2.4 mm Male Connector

410U/383/1.85mmF

U-Band

40-60

0.5

17

10

WR-19 Waveguide with UG-383/U-M Flange

1.85 mm Female connector

410U/383/1.85mmM

U-Band

40-60

0.5

17

10

WR-19 Waveguide with UG-383/U-M Flange

1.85 mm Male Connector

410V/385/1.85mmF

V-Band

50-67

0.5

17

10

WR-15 Waveguide With UG-385/U Flange

1.85 mm Female connector

410V/385/1.85mmM

V-Band

50-67

0.5

17

10

WR-15 Waveguide with UG-385/U Flange

1.85 mm Male connector

410V/385/1.85mmF

V-Band

50-67

0.5

17

10

WR-15 Waveguide with UG-385/U Flange

1.85 mm Female connector

410V/385/1.00mmF

V-Band

50-67

0.5

15

10

WR-15 Waveguide with UG-385/U Flange

1.00 mm Female connector

410E/387/1.00mmM

E-Band

60-90

1

15

10

WR-12 Waveguide, UG-387/U Flange

1.85 mm Male connector

410E/387/1.00mmF

E-Band

60-90

1

15

10

WR-12 Waveguide, UG-387/U Flange

1.00 mm Female connector

410W/387/1.00mmM

W-Band

75-110

1.2

15

10

WR-10 Waveguide, UG-387/U-M Flange

1.00 mm Male connector

410W/387/1.00mmF

W-Band

75-110

1.2

15

10

WR-10 Waveguide, UG-387/U-M Flange

1.00 mm Female connector
