KRYTAR零偏置肖特基偵測器

發布(bu)的時間間隔：2021-08-27 16:54:16     手機瀏覽：1606

KRYTAR零偏置肖特基探測器專門用作現階段的高性能微波設備和系統軟件。KRYTAR探測器專為功率檢測、解析雷達性能指標、調整脈沖信號源、AM噪聲檢測、系統軟件監測和超寬帶和毫米波運用中的脈沖射頻檢測等運用而設計構思。

基本特性。

10MHz—40GHz做工(gong)作速率范(fan)疇。

不錯的率反映。

挑選放入和導出連接(jie)方式器。

山(shan)東市立維創展信息技術軟(ruan)件授(shou)權(quan)代(dai)理商(shang)RADITEK新(xin)護(hu)(hu)膚(fu)品，這部分(fen)規格型號配備現貨黃金。新(xin)護(hu)(hu)膚(fu)品原版進口清關，的質(zhi)量擔保(bao)，歡迎圖(tu)片服務咨詢。

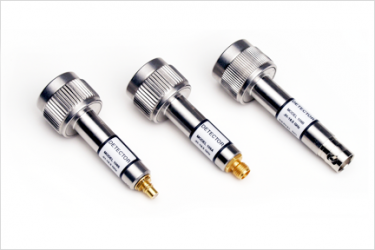

 KRYTAR零偏置肖特基探測器

Model

Frequency
Min (MHz)

Frequency
Max (GHz)

Frequency Response

Maximum VSWR

Output
Capacitance

Input
Connector

Output
Connector

203A

10

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

30 pF

2.4 mm Male

SMA Female

203B

10

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

30 pF

2.4 mm Male

BNC Female

203S

10

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

30 pF

2.4 mm Male

SMC Jack

203AK

10

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

30 pF

2.92 mm Male

SMA Female

203BK

10

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

30 pF

2.92 mm Male

BNC Female

203SK

10

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

30 pF

2.92 mm Male

SMC Jack

303A

100

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

3 pF

2.4 mm Male

SMA Female

303B

100

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

3 pF

2.4 mm Male

BNC Female

303S

100

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

3 pF

2.4 mm Male

SMC Jack

303AK

100

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

3 pF

2.92 mm Male

SMA Female

303BK

100

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

3 pF

2.92 mm Male

BNC Female

303SK

100

40

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz

1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz

3 pF

2.92 mm Male

SMC Jack

202A

10

26.5

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz

1.35 to 20 GHz
1.50 to 26.5 Ghz

30 pF

3.5 mm Male

SMA Female

202B

10

26.5

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz

1.35 to 20 GHz
1.50 to 26.5 Ghz

30 pF

3.5 mm Male

BNC Female

202S

10

26.5

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz

1.35 to 20 GHz
1.50 to 26.5 Ghz

30 pF

3.5 mm Male

SMC Jack

302A

100

26.5

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz

1.35 to 20 GHz
1.50 to 26.5 Ghz

3 pF

3.5 mm Male

SMA Female

302B

100

26.5

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz

1.35 to 20 GHz
1.50 to 26.5 Ghz

3 pF

3.5 mm Male

BNC Female

302S

100

26.5

± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz

1.35 to 20 GHz
1.50 to 26.5 Ghz

3 pF

3.5 mm Male

SMC Jack

201A

10

20

± 0.5 dB

1.35

30 pF

3.5 mm Male

SMA Female

201B

10

20

± 0.5 dB

1.35

30 pF

3.5 mm Male

BNC Female

201S

10

20

± 0.5 dB

1.35

30 pF

3.5 mm Male

SMC Jack

301A

100

20

± 0.5 dB

1.35

3 pF

3.5 mm Male

SMA Female

301B

100

20

± 0.5 dB

1.35

3 pF

3.5 mm Male

BNC Female

301S

100

20

± 0.5 dB

1.35

3 pF

3.5 mm Male

SMC Jack

109A

10

18.5

± 0.3 dB to 12.4 GHz
± 0.6 dB to 18.5 GHz

1.15 to 4.0 GHz
1.30 to 15 GHz
1.40 to 18.5 GHz

30 pF

N Male

SMA Female

109B

10

18.5

± 0.3 dB to 12.4 GHz
± 0.6 dB to 18.5 GHz

1.15 to 4.0 GHz
1.30 to 15 GHz
1.40 to 18.5 GHz

30 pF

N Male

BNC Female

109S

10

18.5

± 0.3 dB to 12.4 GHz
± 0.6 dB to 18.5 GHz

1.15 to 4.0 GHz
1.30 to 15 GHz
1.40 to 18.5 GHz

30 pF

N Male

SMC Jack

209A

100

18.5

± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz

1.15 to 4 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz

3 pF

N Male

SMA Female

209B

100

18.5

± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz

1.15 to 4 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz

3 pF

N Male

BNC Female

209S

100

18.5

± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz

1.15 to 4 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz

3 pF

N Male

SMC Jack
