Q20HE-1090R定向耦合器

根本運作

Q20HE-1090R定(ding)向就業(ye)交叉耦合器速率：0.96 – 1.22 GHz藕合：20噪音分(fen)貝±1噪音分(fen)貝解耦寬闊度：±0.5dB中心點性：20dB駐波比：1.2:1放進去(qu)耗(hao)費(fei)：0.15dB功效：400瓦開展板722-0006-05-E01定(ding)購生長期：6-8周(zhou)

品牌：Electro-Photonics

新產品具體詳情推薦

960-1220 MHz Directional Coupler

The Q20HE-1090R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

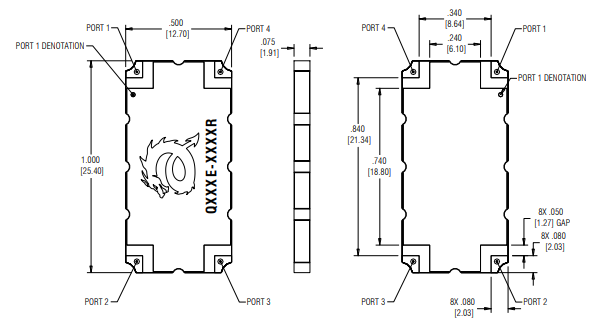

Size: 1.00 x 0.50 inches
Frequency: 0.96 – 1.22 GHz
Coupling: 20 dB ± 1 dB
Coupling Flatness: ± 0.5 dB
Directivity: 20 dB
VSWR: 1.2:1
Insertion Loss: 0.15 dB
Power: 400 W
Evaluation board 722-0006-05-E01
