?Q30HE-900R定向耦合器

至關重要性能

Q30HE-900R定(ding)向耦合(he)器

率：0.7 – 1.2 GHz解耦：30.分之五貝±五分貝耦合電路平整度：±0.3dB角度性：18音貝駐波比：1.10:1復制到損耗費：0.1dB額定功率：355瓦評估報告格式板722-0006-05-E01訂購時間是：6-8周

品牌：Electro-Photonics

類產品具體詳細介紹英文

700-1200 MHz Directional Coupler

The Q30HE-900R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

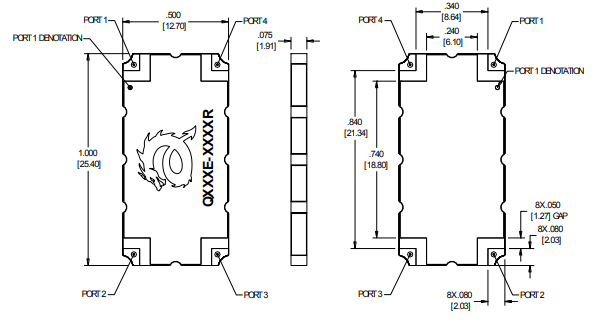

Size: 1.00 x 0.50 inches
Frequency: 0.7 – 1.2 GHz
Coupling: 30.5 dB ± 1 dB
Coupling Flatness: ± 0.3 dB
Directivity: 18 dB
VSWR: 1.10:1
Insertion Loss: 0.1 dB
Power: 355 W
Evaluation board 722-0006-05-E01
