Q3XG-1088R
Q3XG-1088R
關鍵叁數

Q3XG-1088R 寬帶(dai)混(hun)合(he)耦合(he)器

平率：960-1215兆赫工率：175瓦導入不足：0.12 dB防護度：26聲音頻率駐波比：1.15購貨壽命：6-8周

品牌：Electro-Photonics

食品商品詳情說

Features

  • 960 – 1215 MHz
  • Low Loss
  • High Isolation
  • Tight Amplitude Balance
  • 90 deg Quadrature
  • Surface Mountable
  • CTE Matched
  • ARNS Band
  • Tape and Reel Option

Specifications

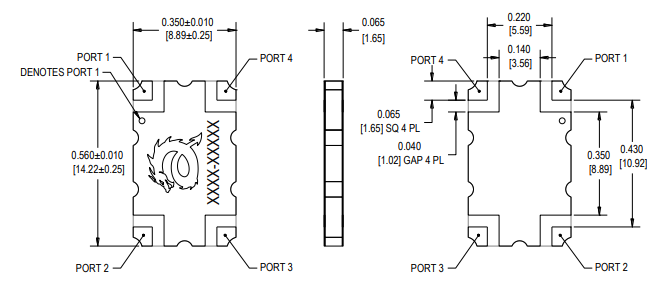

  • Size: .560 x .350 inches
  • Frequency: 960-1215 MHz
  • Power: 175 W
  • Insertion Loss: .12 dB
  • Amplitude Balance: ± .2
  • Isolation: 26 dB
  • VSWR: 1.15
  • Phase Balance: ± 2
