ARCV60-12S AC-DC ITE24v電源控制模塊ARCH

發布信息時段：2024-09-04 08:51:31     瀏(liu)覽訪問：5507

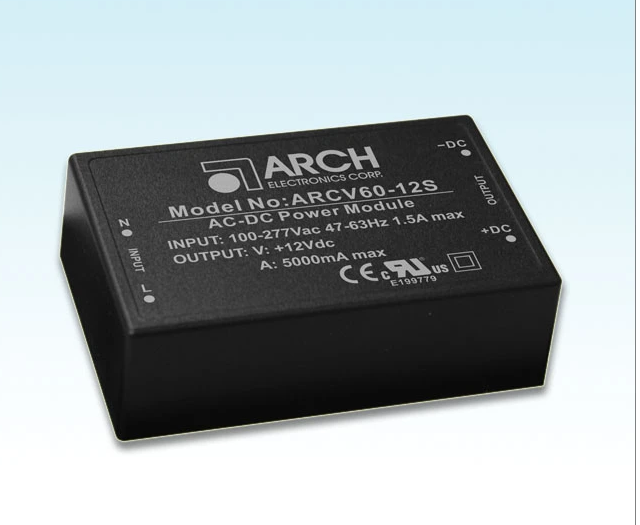

ARCV60-12S AC-DC ITE電源模塊ARCHg

　　ARCH ARCV60-12S AC-DC ITE電源模塊特點：

　　工作輸出耗油率：60W　　緊促長寬比：2.92寸大 x 1.85寸大 x 0.91寸大　　寬輸入范疇：90至305VAC　　多直流電壓輸出：12VDC, 15VDC, 24VDC　　高底部隔離霜電壓值：4300VAC I/O底部隔離霜　　寬溫事情的范圍：-40°C至+85°C　　節能降耗的設計：低空載能耗 < 0.1W　　錯誤率高率：高達模型90%

規格參數：

Model NoARCV60=128 ARCV60-15S ARCV60-248
Max Output Wattage (W)60W
inputVoltage90-305 VAC or 120-430 VDC
Frequency (Hz47-63 Hz
Current (Full load)1500 mA max. (115 VAC)/1000 mA max. (230 VAC)
Inrush Current(<2ms)45 Amax. (115 VAC)/90 Amax. (230 VAC)
Leakage Curren0.25 mA max. (100-240 VAC)
No Load Power Consumption<0.1W(115/230 VAC)
OutputVoltage  (V.DC)12V 15V 24V
Voltage Accuracy±2%
Current (mA)max5000  4000  2500
Line Regulaton (LL-HL)(typ.)±0.5%
Load Regulation (0-100%)(typ.)±1%
Minimum Load0%
Maximum Capacitive Load6000 uF 5000 uF 1200 uF
Rlpple &Noise (Full Load)120mV 150mV 240mV
Efficlency (at 230 VAC)90% 90% 90%
Hold-upTime (typ)30ms (at 230VAC
ProtectionOver Power ProtectionAuto recovenry
Over Voltage ProtectionZener diode clamp
Short Circuit ProtectionHiccup mode (automatic recovery
Isolationnput-Output  (V.AC)4300V
EnvironmentOperating Temperature40°℃...+85°C (with derating)
Storage Temperature-40°℃...+85°℃
Temperature Coefficlent±0.05%/°℃
Altitude During Operation(UL/IEC/EN 62368-1)5000m
Humidity95%RH
MTBF>300,000 h@25℃ (MIL-HDBK-217F)
Qver Voltage CategoryⅢ:Compliance to EN 61558;altitude up to 2000 meters
VibrationIEC60068-2-6 (10-500Hz,2G 10min./1cycle,60min.each along X,Y,Z axes
ShockIEC60068-2-27
PhysicaDimensions(LxWx H)2.92×1.85×0.91 Inches (74.2x47.0x23.1 mm)
Tolerance ±0.5 mm,Height Tolerance±1 mm
Case MaterialPlastic resin(flammabilityto UL94V-0)
Weight158g
Cooling MethodFree air convection
SafetyApprovaUL/IEC/EN 62368-1
MeetIEC/EN61558-1,IEC/EN 61558-2-16,IEC/EN 60335-1
EMCEMI
(Conducted &Radiated Emlssion)		EN 55032 class B
EMS(Nolse Immunity)EN 55035
