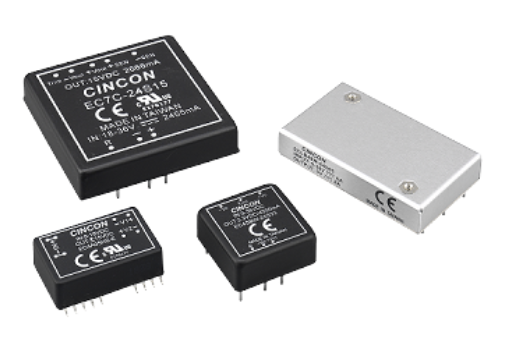

CINCON主機電源摸塊DIP / SMD 3-75W

發布的(de)日期：2020-11-13 14:29:38     手(shou)機瀏覽：2448

CINCON電源開關公司設計(ji)和制(zhi)造了3W-75WDC/DC轉(zhuan)換器，具有工業(ye)標(biao)準和引(yin)腳(jiao)布置的特點。CINCON外接電源版塊DIP / SMD 3-75W有著成功率高、任務工作頻率高、輸入比率廣的結構特征。CINCON24v電源也為各樣用途出示了非隔開防曬和特別隔開防曬的DC/DC改變器。

南京市立維創展(zhan)科技發展(zhan)技術的(de)公司的(de)是CINCON外接電源版塊(kuai)的(de)分(fen)銷管理商，能提供CINCON電原(yuan)摸塊整流(liu)電、交(jiao)整流(liu)電原(yuan)、LED供電(dian)等，原物品進口報關，重量(liang)確認，價位(wei)優(you)勢，追捧咨詢公司。

詳情介紹知道CINCON電源適配(pei)器請單(dan)擊：//anchor-appliance.cn/article/2177.html


2:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC3A

3W

4.5~6V, 9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC3AB

3W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
EN55022 Class B
UL60950-1

1.25x0.80x0.50(DIP24)
1.25x0.80x0.55(SMD24)


EC3A-E

3W

4.5~9V, 9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
EN55022 Class A
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
1.25×0.80x0.41(SMD24)


EC4A

6W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC4AB

6W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
EN55022 Class B
UL60950-1

1.25x0.80x0.50(DIP24)
1.25x0.80x0.55(SMD24)


EC4A-E

6W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation
EN55022 Class A
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
1.25×0.80x0.41(SMD24)


EC6A

7.5W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC2SB

10W

4.7~9V, 9~18V, 18~36V, 36~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)
1.00x1.00x0.36(SMD)


EC4BE

10W

9~18V, 18~36V, 36~72V

5V, 12V, 15V, ±5V, ±12V, ±15V

500Vdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC4BU

10W

4.7~9V, 9~18V, 18~36V, 36~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC7A

10W

9~18V, 18~36V, 36~75V

2.5V, 3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC3SB

15W

9~18V, 18~36V, 36~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)
1.00x1.00x0.36(SMD)


EC5BU

15W

9~18V, 18~36V, 36~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC5BE

15W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500Vdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC7B

20W

9~18V, 18~36V, 36~75V

1.8V, 2.5V, 3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)


EC6C

30W

9~18V, 18~36V, 36~72V

3.3V, 5V, 12V, 15V, 5/±12V, 5/±15V, ±5V, ±12V, ±15V

500Vdc Isolation
EN60950-1

2.00x2.00x0.40(DIP)


EC7C

40W

9~18V, 18~36V, 36~75V

2.5V, 3.3V, 5V, 12V, 15V, 3.3/5V, 3.3/±12V, 3.3/±15V, 5/±12V, 5/±15V, ±12V, ±15V

1.5KVdc Isolation
EN60950-1

2.00x2.00x0.40(DIP)

4:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC3AW

3W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC4AW

6W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC6AW

8W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN50155 Compliant

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC2SBW

10W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC4BW

10W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500Vdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC6AW-110

10W

43~160V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

1.25x0.80x0.50(DIP24)


EC8AW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

1.25x0.80x0.40(DIP24)


EC3SBW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC5BW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC5C

15W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, 5/±12V, 5/±15V, ±5V, ±12V, ±15V

500Vdc Isolation
EN60950-1

2.00x2.00x0.40(DIP)


EC1SC

20W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

EN55022 Class A

2.00×1.60×0.45(DIP)


EC4SBW

20W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC7BW-110

20W

43~160V

5V, 12V, 15V, ±12V, ±15V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)


EC7BW

20W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

NRND

EC3SCW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V

1.5KVdc Isolation
EN60950-1

2.00×1.60×0.40(DIP)


EC5SBW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC9BW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)


ECLB40W

40W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)


ECLB40W-110

40W

43~160V

3.3V, 5V, 12V, 15V, ±12V, ±15V, ±24V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.05x1.20x0.40(DIP)


ECLB60W

60W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

NEW

ECLB75W

75W

18~75V, 9~36V

5V, 12V, 15V, ±12V, ±15V, ±24V

2.25KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

18:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

EC7BW18

20W

8.5~160V

12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
UL62368-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

High Isolation 6KV


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC4AW-H6

5-6W

9-36V, 18-72V

5V, 12V, +/-12V, +/-15V

6KVdc Isolation
EN55022 Class A
5uA Leakage Current

1.25x0.80x0.40
(DIP24)

+/-10% Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC3AE

3W

5V, 12V, 24V, 28V, 48V

12V, 15V, 5V, ±12V, ±15V


1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
